Remote control overlays can include artwork, graphics, logos, and text. Overlays are also used to reduce the key count on the remote. Unwanted keys are removed, and the overlay covers the hole left in the remote control top case. Overlays can be used to make key grouping or key patterns that best fit your application.


Remote Control Overlay Samples

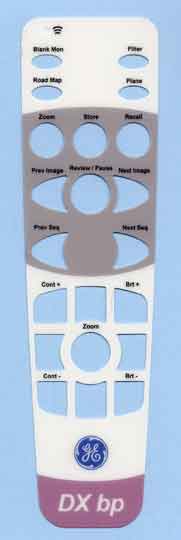

overlay sample 1 overlay sample 2
In the above sample, note the different text, color, and keys used. Unused keys are removed before assembly of the remote control.
overlays sample 3 overlay sample 4
The sample on the left shows a blank overlay for the remote with all key holes exposed. The overlay on the right shows how adding text and reducing the key count allows the remote to be adapted to this cusomers application. This example is for a low volume application.
