| Celadon Inc. |
|
|
|
| RCV-5000 IR to RS-232 Output Table |
| Device: GE Calibur DVMR Triplex |
|
|
|
|
|
|
| Infrared Remote Control:Celadon, SC-45 |
| Infrared Code Format: NEC - Device ID: FF00 |
| Infrared Receiver: Celadon RCV-5000 Infrared to RS-232 Receiver |
| RCV-5000 Data File: calibur2_SC45_r.hex |
| Note: Carriage return at end of string. |
|
|
| Data: 9600 Baud, 8, N, 1, HEX/ASCII Output |
| Standard Transmit and Receive pinout |
|
|
|
|
|
GE Calibur |
0xFF, 0x55, Button |
|

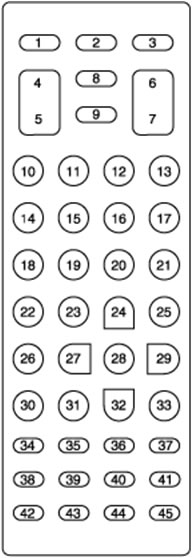

| Key Number |
DVMR Function |
HEX Button Output |
|
| 1 |
Search |
111 |
|
| 2 |
Macro |
44 |
|
| 3 |
Play |
2 |
|
| 4 |
Frame Forward |
113 |
|
| 5 |
Frame Reverse |
112 |
|
| 6 |
Play Forward |
116 |
|
| 7 |
Play Reverse |
114 |
|
| 8 |
Stop #3 |
3 |
|
| 9 |
Stop #115 |
115 |
|
| 10 |
Camera 1 |
9 |
|
| 11 |
Camera 2 |
10 |
|
| 12 |
Camera 3 |
11 |
|
| 13 |
Camera 4 |
12 |
|
| 14 |
Camera 5 |
13 |
|
| 15 |
Camera 6 |
14 |
|
| 16 |
Camera 7 |
15 |
|
| 17 |
Camera 8 |
16 |
|
| 18 |
Camera 9 |
17 |
|
| 19 |
Camera 10 |
18 |
|
| 20 |
Camera 11 |
19 |
|
| 21 |
Camera 12 |
20 |
|
| 22 |
Camera 13 |
21 |
|
| 23 |
Camera 14 |
22 |
|
| 24 |
Up Arrow |
66 |
|
| 25 |
Menu |
41 |
|
| 26 |
Camera 15 |
23 |
|
| 27 |
Left Arrow |
64 |
|
| 28 |
Enter |
42 |
|
| 29 |
Right Arrow |
65 |
|
| 30 |
Camera 16 |
24 |
|
| 31 |
Monitor A |
130 |
|
| 32 |
Down Arrow |
67 |
|
| 33 |
Monitor B |
50 |
|
| 34 |
2 Way Multiscreen |
131 |
|
| 35 |
4 Way Multiscreen |
132 |
|
| 36 |
6 Way Multiscreen |
133 |
|
| 37 |
7 Way Multiscreen |
134 |
|
| 38 |
9 Way Multiscreen |
135 |
|
| 39 |
10 Way Multiscreen |
136 |
|
| 40 |
13 Way Multiscreen |
137 |
|
| 41 |
16 Way Multiscreen |
138 |
|
| 42 |
Freeze |
5 |
|
| 43 |
Zoom |
6 |
|
| 44 |
Sequence |
7 |
|
| 45 |
Record |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
